PRECISION FOR FLOATING RIGS.

SAFER INDEXING FOR EVERY RIG.

Product

PURPOSE-BUILT FOR SAFER DRILLING OPERATIONS.

Feature

REMOVE PERSONNEL FROM THE RED ZONE.

Traditional drill string indexing methods can require personnel to enter the red zone to observe measurements and verify drill string position.
The Indexer 25 provides a highly visible reference that can be monitored from outside the red zone, allowing crews to verify drill string position without requiring personnel to remain adjacent to the drill string during indexing. This benefit applies across all drilling rig types.

INTEGRATED DROPS PROTECTION

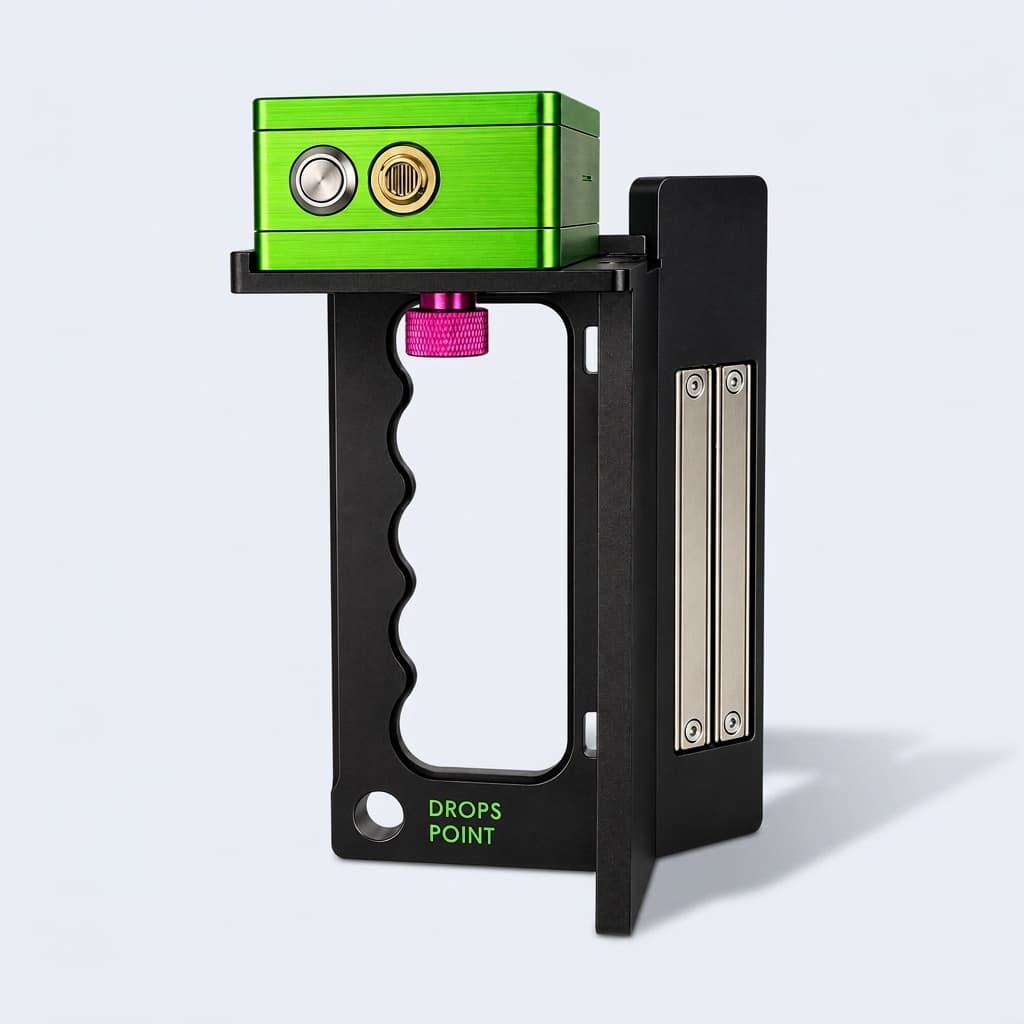

Both the Indexer-25 and the optional magnetic drillpipe bracket incorporate dedicated secondary retention points, allowing each component to be independently tethered (if necessary) to reduce the risk of dropped objects during installation and operation.
See the Indexer-25 in Action
Play video
Solution

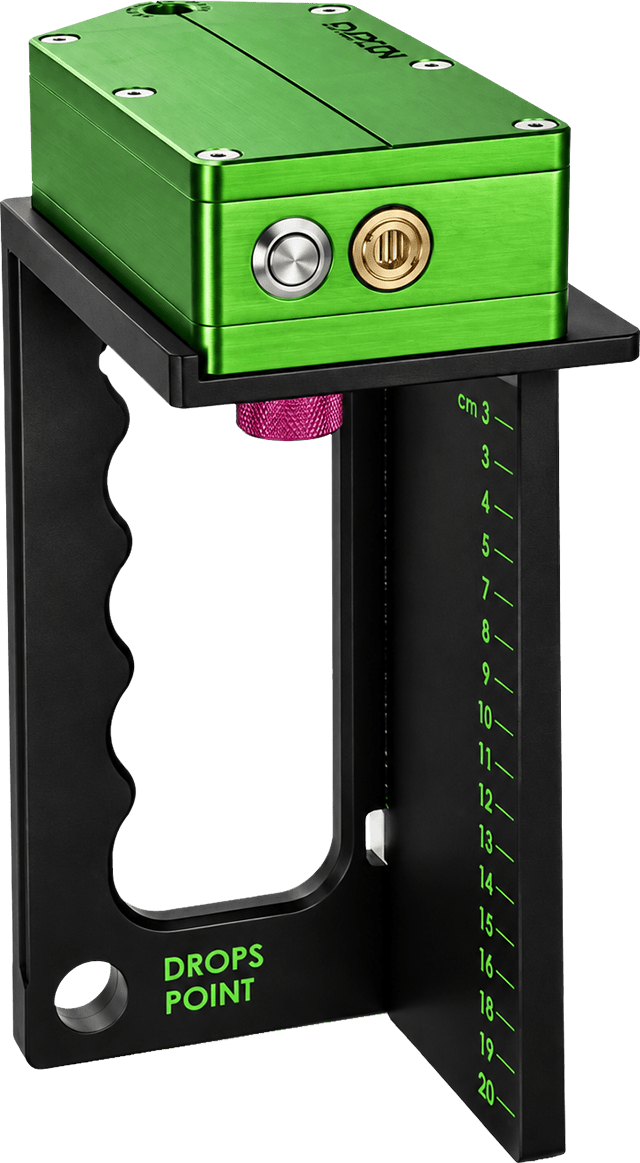

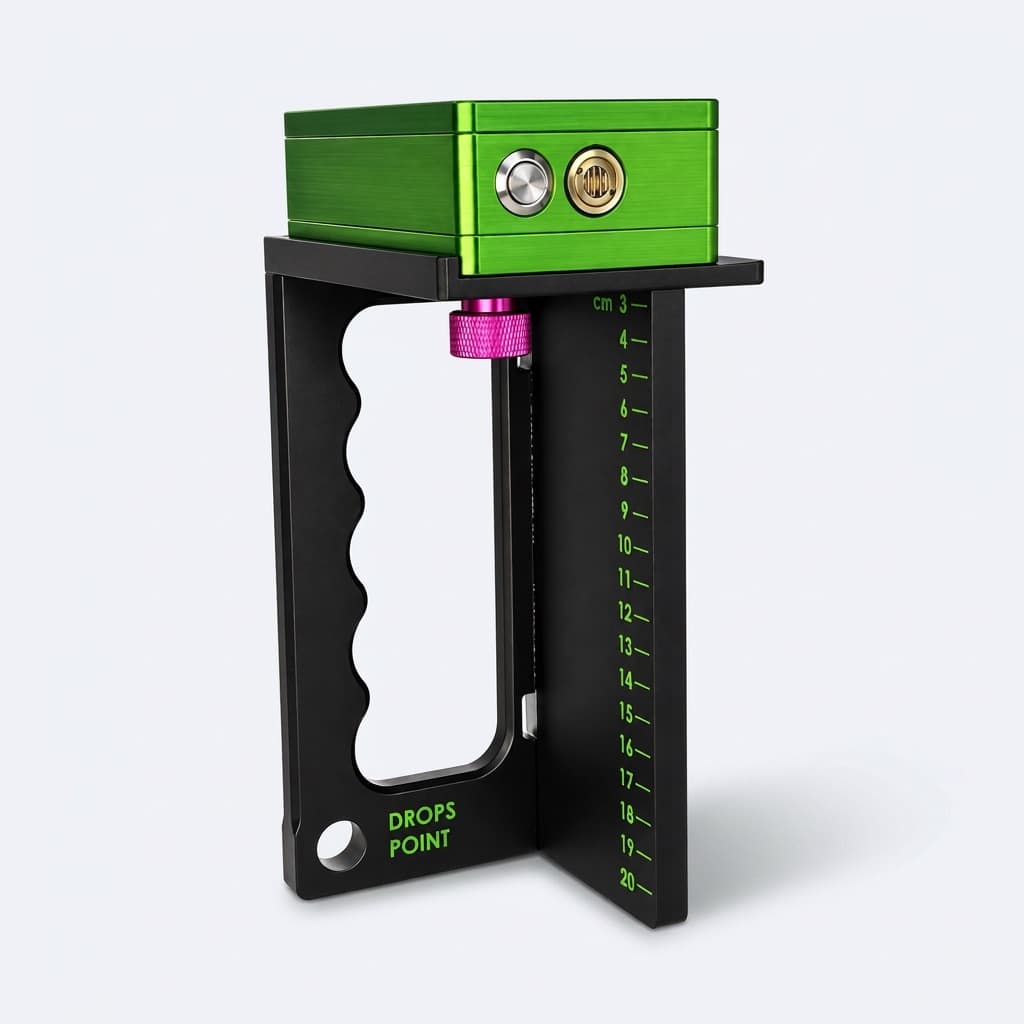

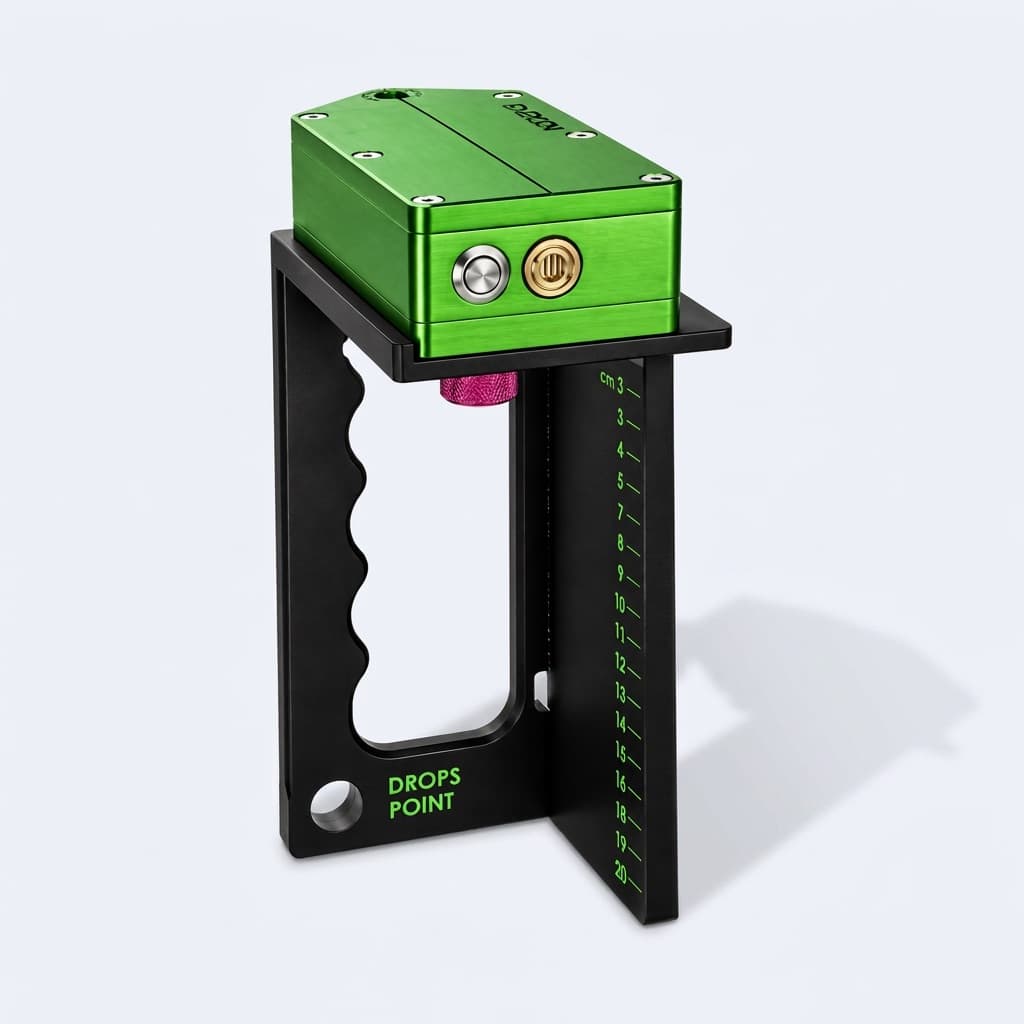

INDEXER-25 & OPTIONAL MAGNETIC DRILLPIPE BRACKET

Construction: The Indexer-25 and optional Magnetic Drillpipe Bracket are constructed from durable, corrosion-resistant materials, engineered to withstand the demanding conditions of drilling operations.

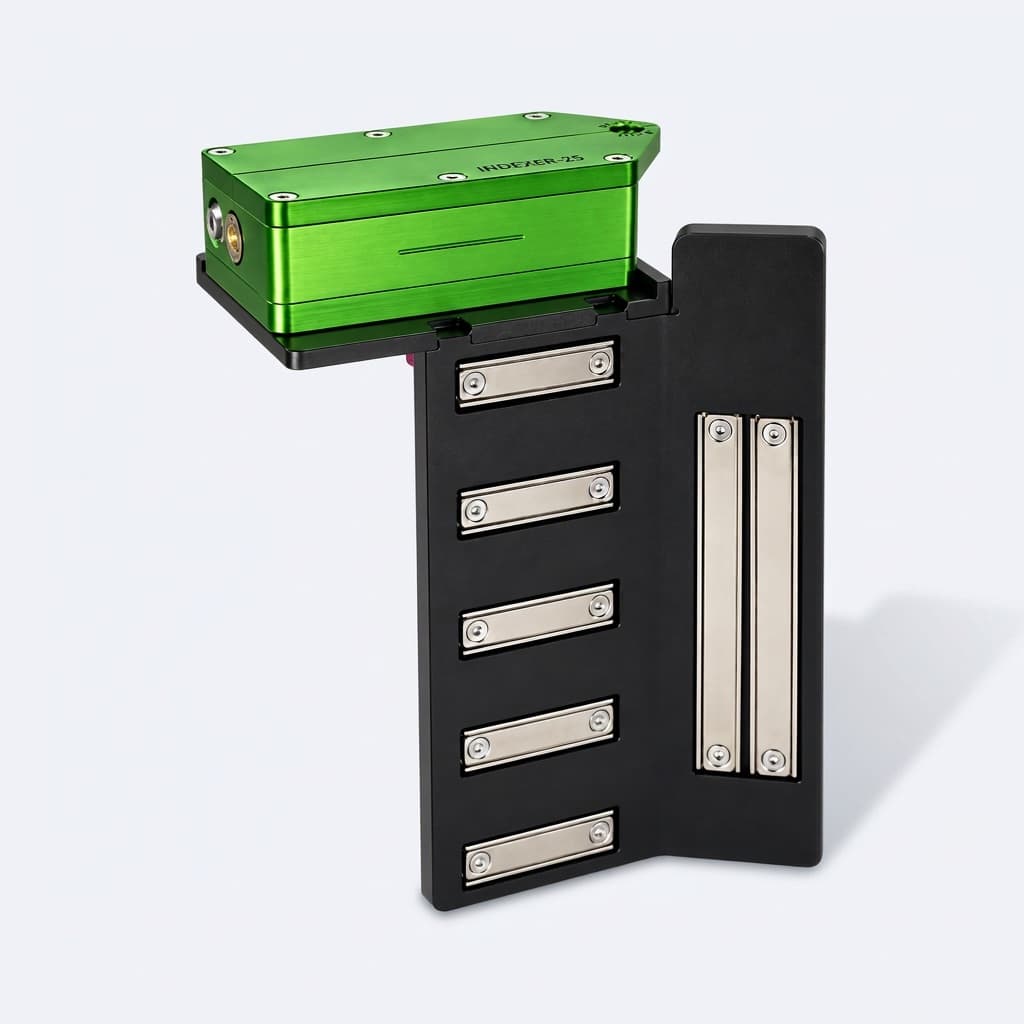

Magnetic mounting and DROPS: The Indexer-25 incorporates integrated neodymium magnets for direct attachment to suitable metallic surfaces, while the optional Magnetic Drillpipe Bracket provides secure mounting to drill pipe from 3" to 12" OD. Both components feature dedicated secondary retention points, allowing independent tethering to reduce dropped-object risks.
Laser Performance: Powered by a sub-5 mW, 532 nm green laser source, the Indexer-25 delivers a highly visible laser reference while maintaining a Class 3R laser safety classification.

The Indexer-25 offers two installation configurations to suit different drilling operations and rig arrangements.

Whether installed at the index line or mounted directly to the drill string using the optional magnetic bracket, the system provides a clear visual reference to support safer, more accurate indexing.
  • Magnetic mounting directly to 3"-12" OD drill pipe/tubulars.
  • Rapid installation, repositioning and removal.
  • Purpose built for the Indexer 25.
  • Rugged construction for drilling environments.
  • Secondary retention / DROPS provision.

ENGINEERED FOR SAFER, MORE EFFICIENT DRILLING OPERATIONS

  • Reduced red-zone exposure – Measurements can be monitored from a safer location, reducing the need to approach the drill string.

  • Accurate visual reference – A clear laser reference supports precise, repeatable indexing.

  • Suitable for all rig types – Applicable to land rigs, jack-ups, drillships and semisubmersibles.

  • Floating-rig capability – Supports indexing where vessel heave and tidal movement introduce additional challenges.

  • Simple deployment – Compact, portable equipment designed for straightforward installation and operation.

CONFIGURATION 1

INDEXER-25 AT THE FIXED INDEX LINE

The Indexer 25 can be mounted at the rig's fixed index line and project the laser onto the drill string. In this configuration the Indexer 25 Magnetic Drill String Bracket is not required.

CONFIGURATION 2

+

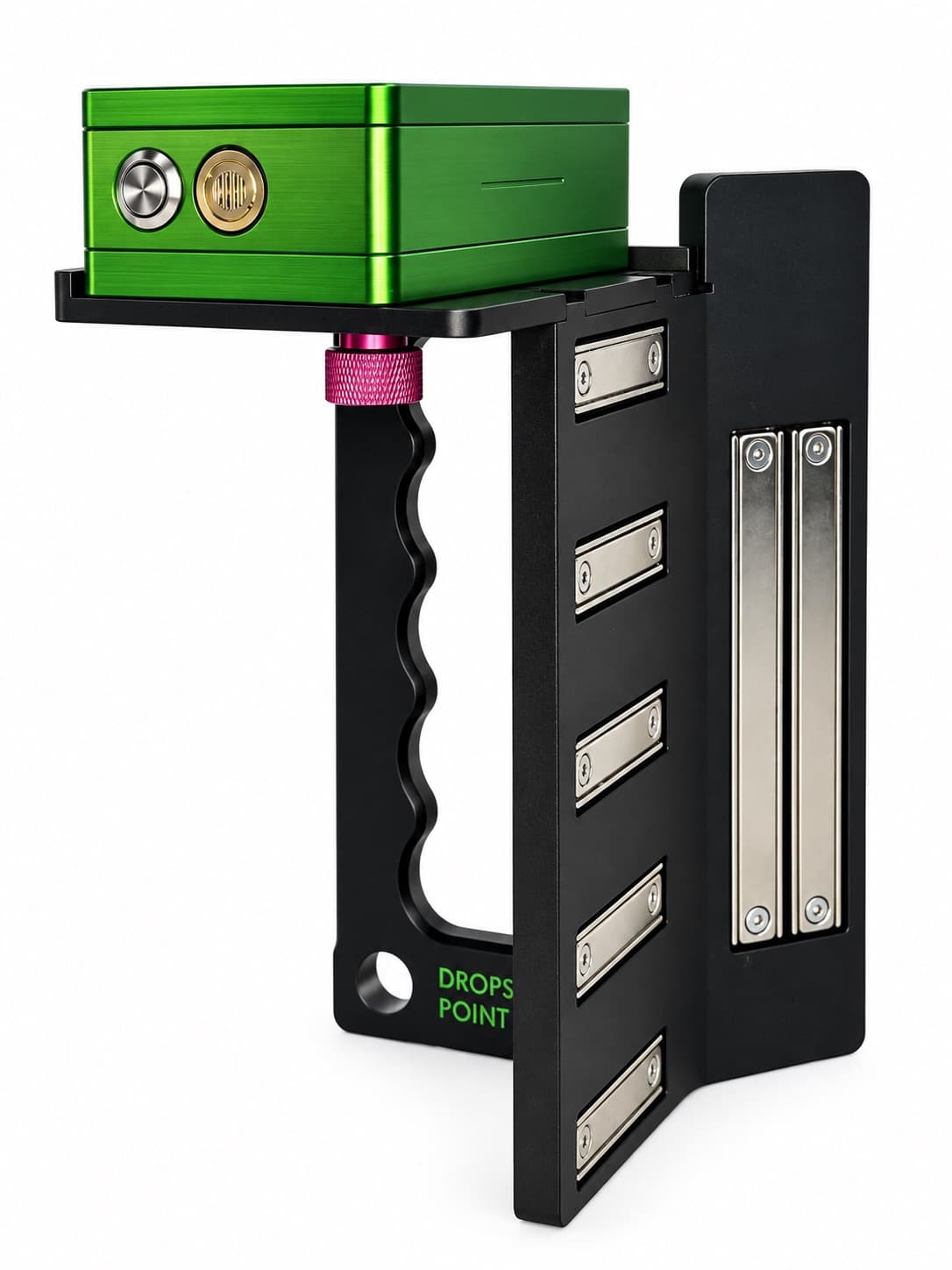

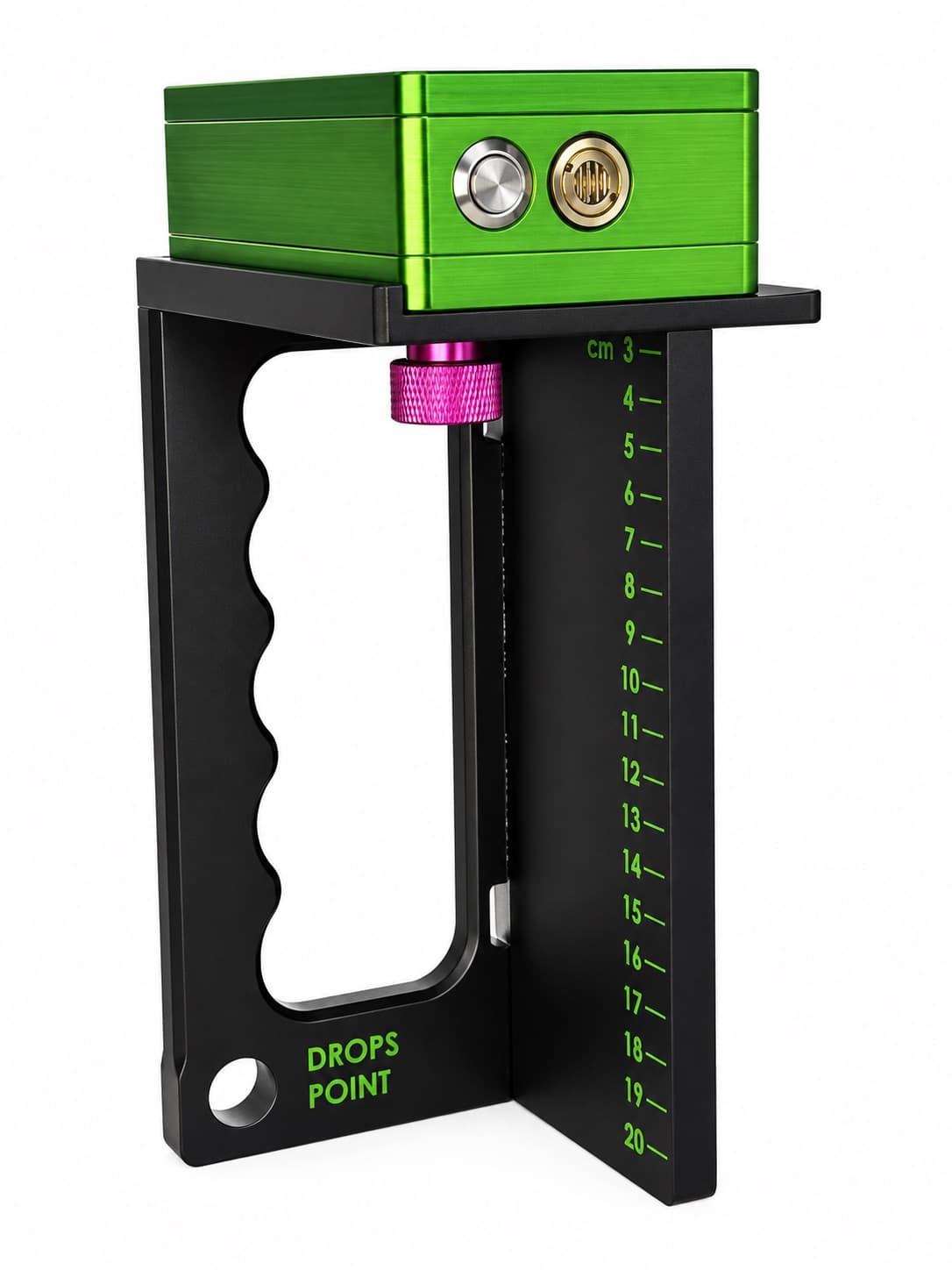

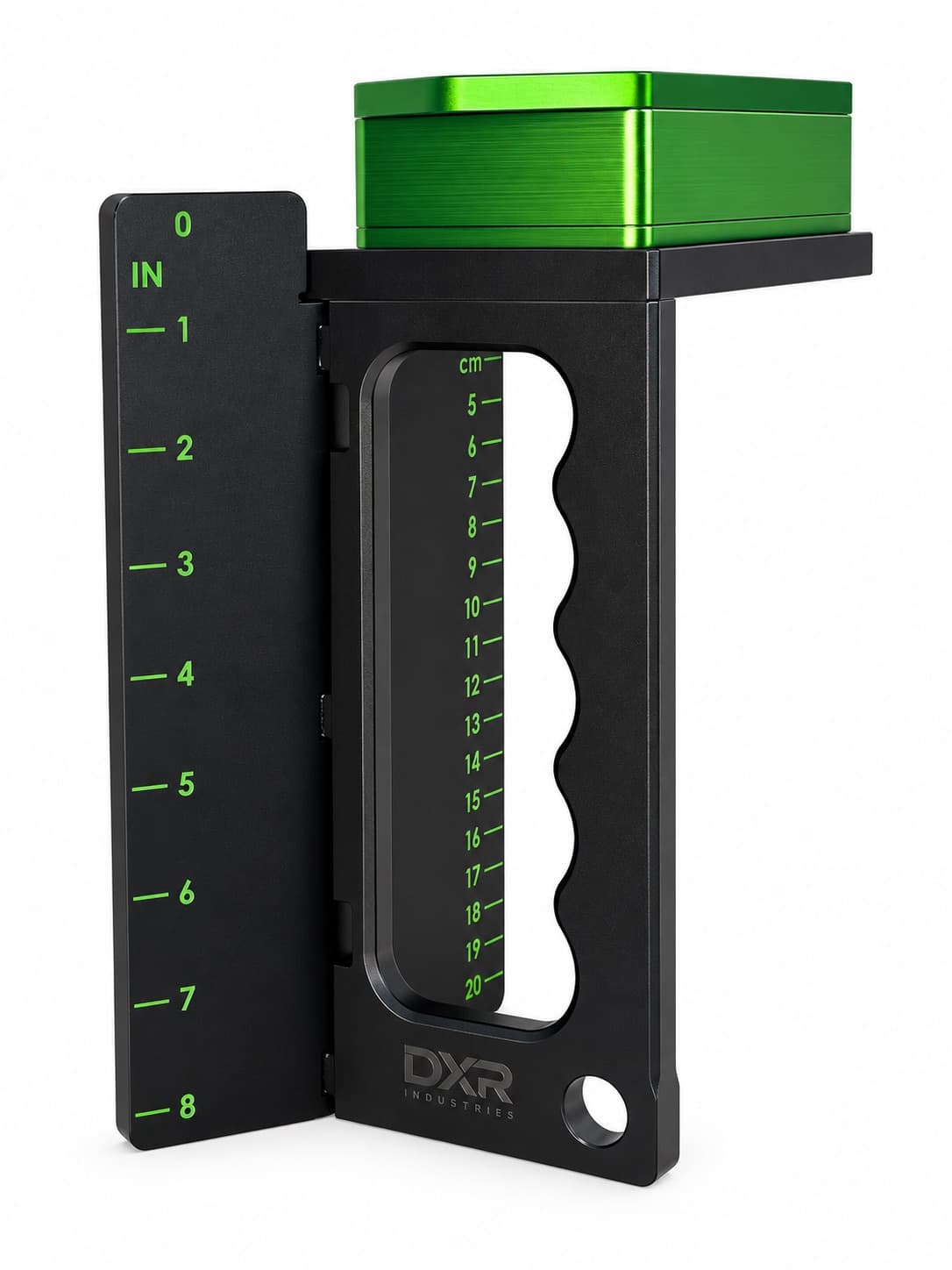

INDEXER-25 MOUNTED TO THE DRILL STRING

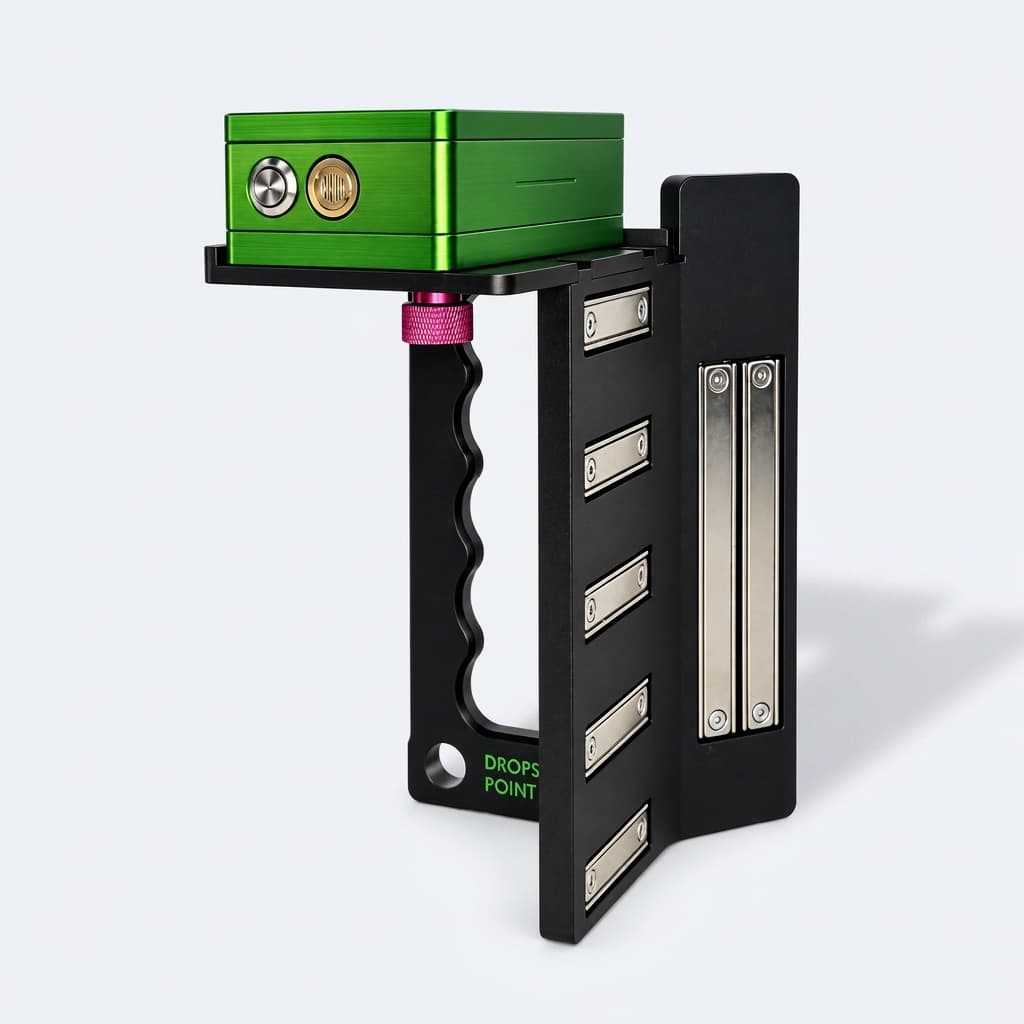

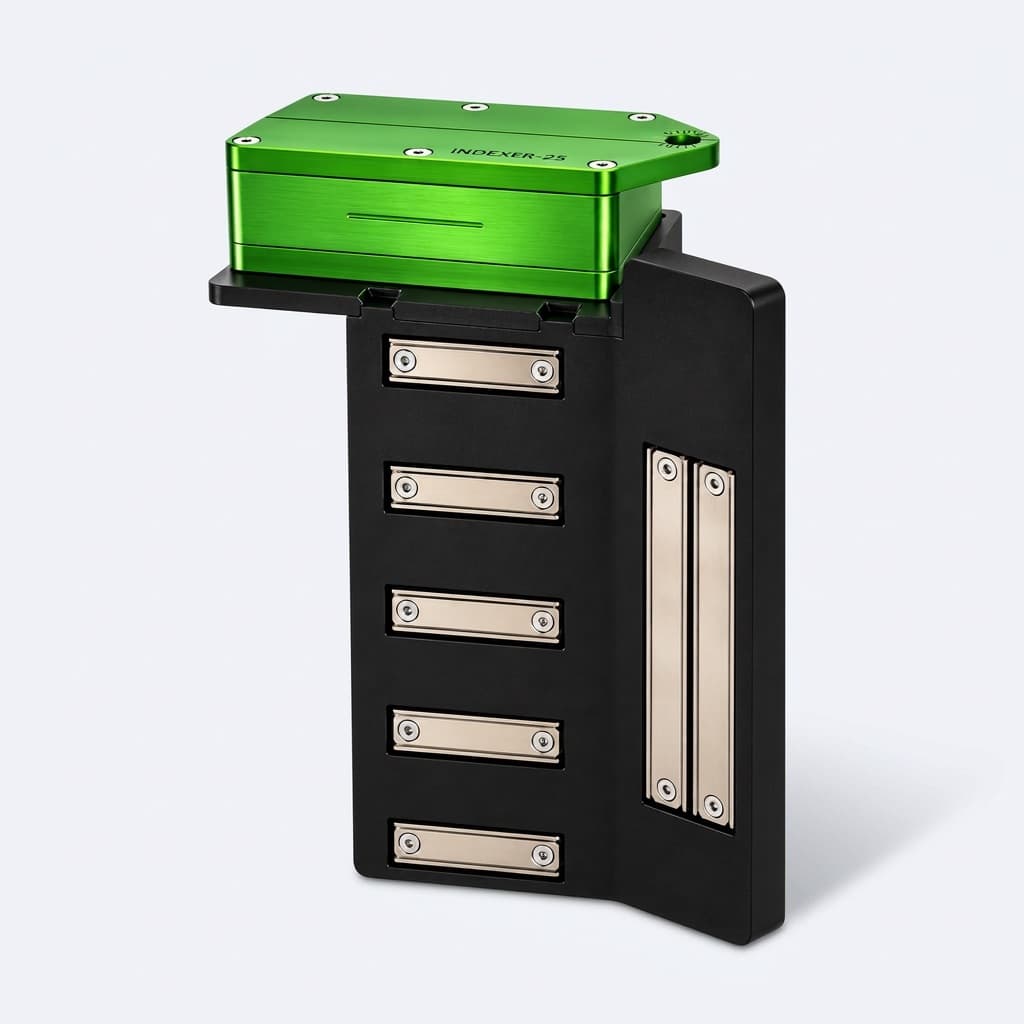

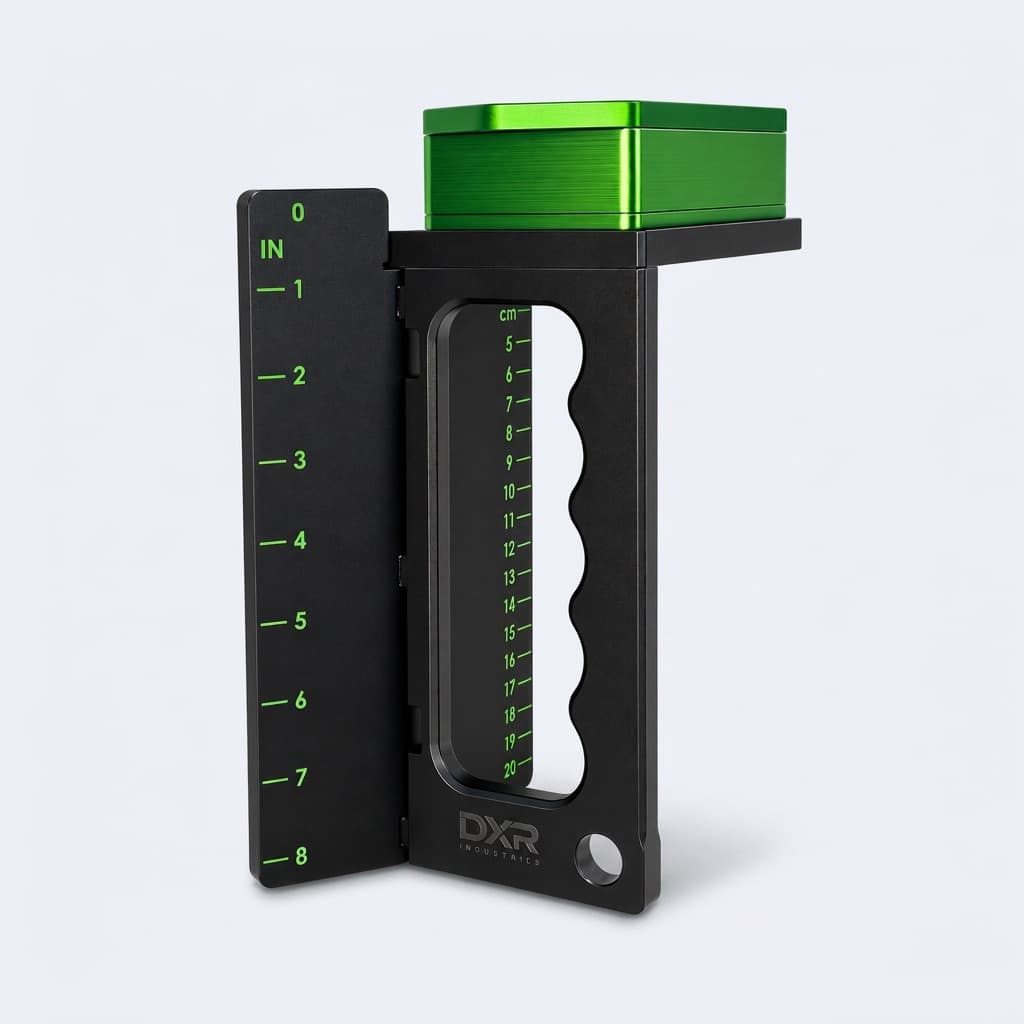

Purpose built magnetic mounting for 3"-12" OD drill pipe/tubulars. The bracket provides a stable, rugged mounting arrangement specifically designed for the Indexer 25.
See the Indexer-25 in Action
Play video
Feature

PRECISION FOR FLOATING RIGS. SAFER INDEXING FOR EVERY RIG.

The Indexer-25 provides a highly visible and repeatable reference for drill string indexing across all rig types.
On floating rigs, it provides particular value by improving indexing precision and repeatability where vessel movement can make conventional methods more challenging. Across all drilling rigs, the Indexer 25 also enables the indexing reference to be observed remotely, allowing personnel to be removed from the red zone during the indexing operation.

Application

Accurate drill string positioning is critical during operations such as landing out tubing hangers, spacing out bottom hole assemblies (BHAs), and ensuring non-shearable components are positioned clear of BOP rams.
The Indexer-25 provides a highly visible, repeatable laser reference that supports precise drill string positioning during these critical operations, while reducing the need for personnel to enter the red zone to perform measurements.

Highly visible

Powered by a custom-developed 532 nm green laser source and precision laser driver, the Indexer-25 delivers exceptional visibility even in the brightest offshore daylight conditions.
The vivid green line provides an unambiguous visual reference for alignment and positioning on the rig floor, deck, or derrick.

SPECIAL REQUIREMENTS

The Indexer 25 is supplied as standard with a high-visibility green line laser. A dot laser configuration can also be supplied for applications requiring greater precision or performance over longer distances.
Contact DXR Industries to discuss your specific operational requirements.
Contact

PRODUCT OPTIONS

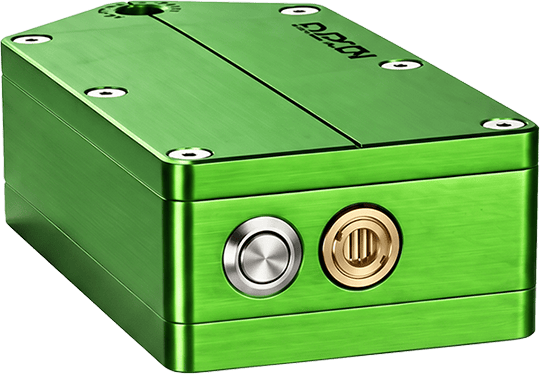

INDEXER 25

REQUEST A QUOTE
Indexer 25 Green Line Laser

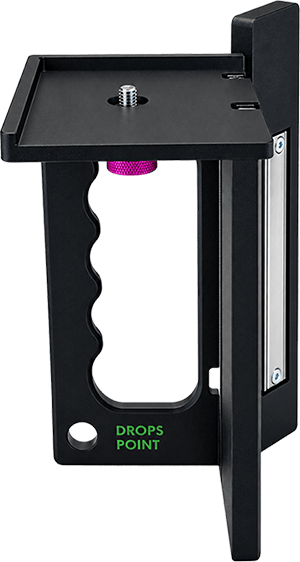

MAGNETIC DRILL STRING BRACKET

REQUEST A QUOTE
Magnetic bracket for 3"-12" OD drill pipe
Available separately for existing Indexer owners
+

INDEXER 25 + MAGNETIC BRACKET

REQUEST A QUOTE
Complete package
INDEXING EQUIPMENT

BEYOND THE INDEXER-25

Supporting Your Complete Indexing Arrangement.

DXR Industries is developing a range of complementary equipment for drill string indexing systems.
From precision rulers and adjustable markers to counterweights, wire rope, sheaves and connection hardware, we provide the components required to support indexing arrangements designed and specified by your engineering team.

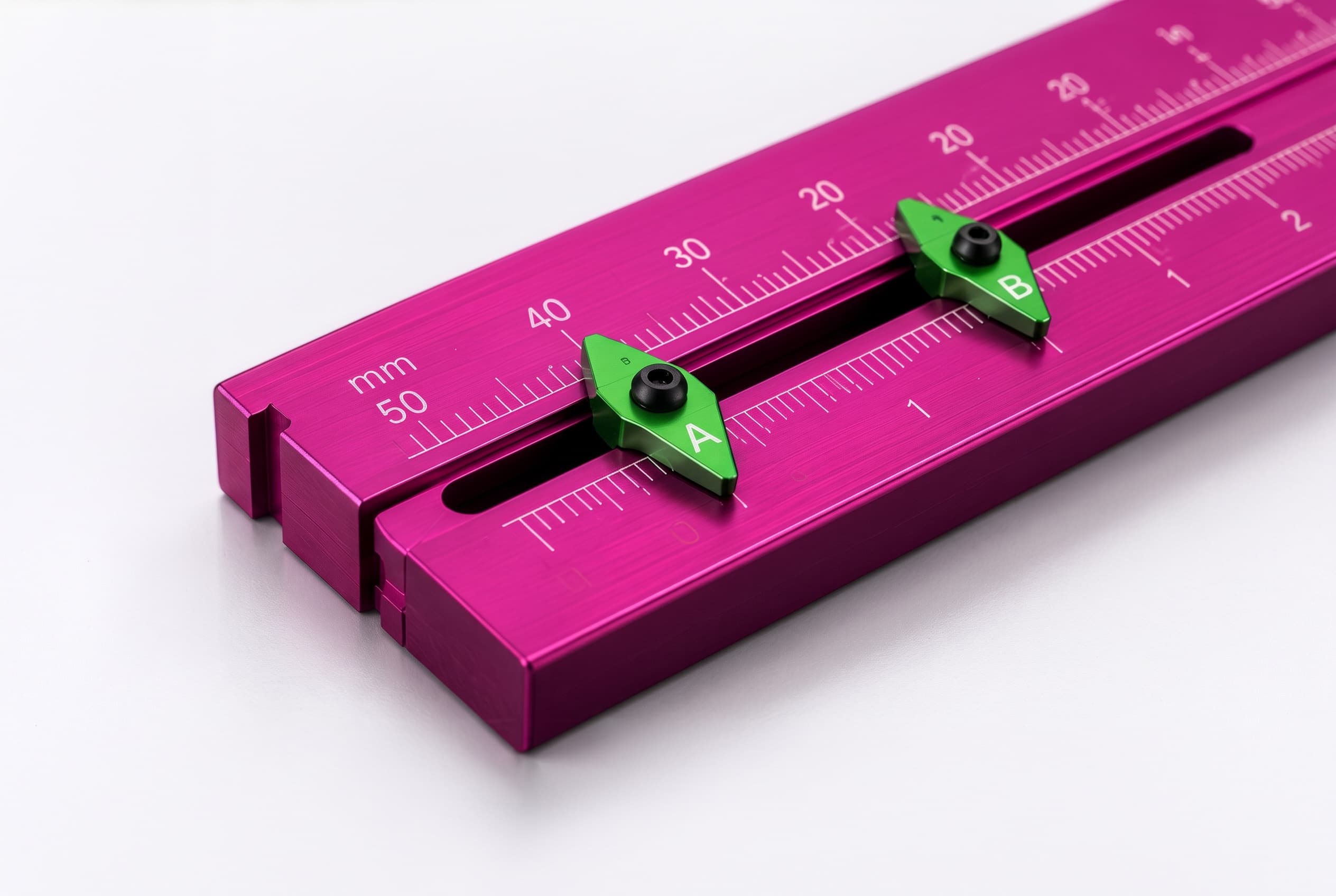

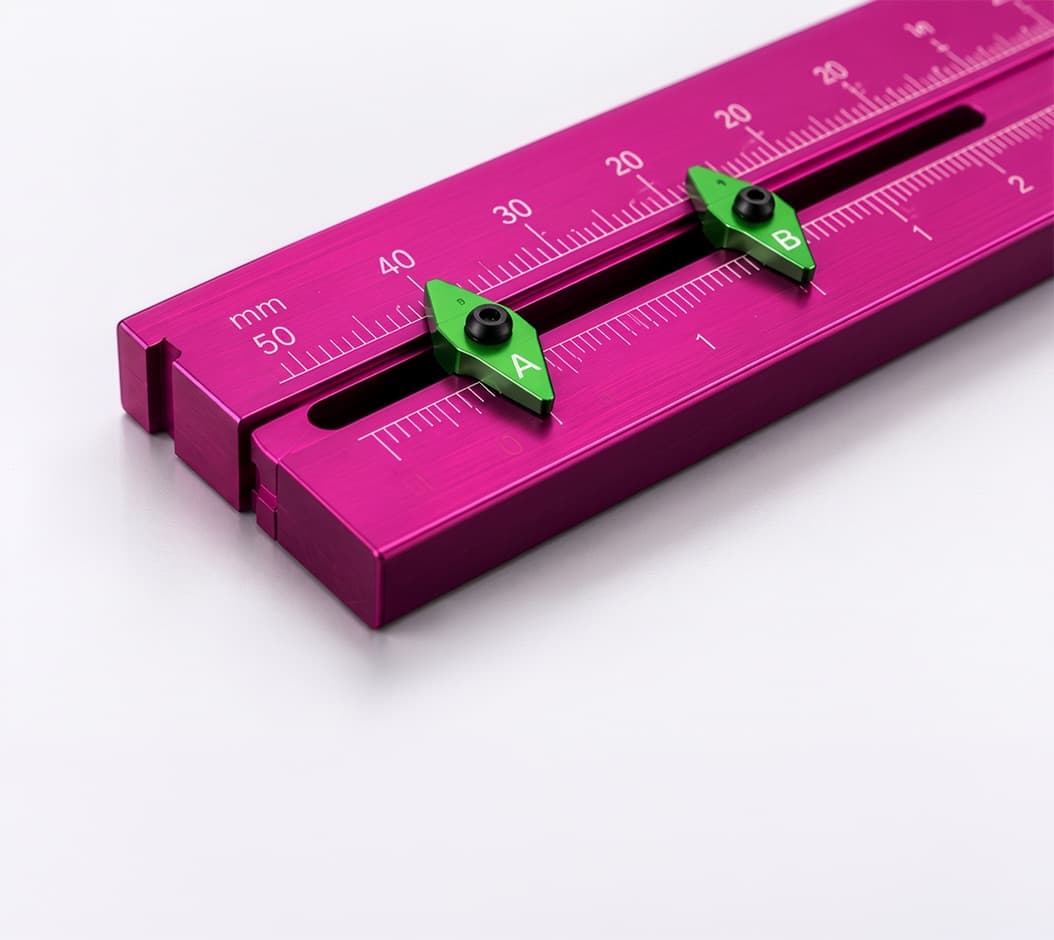

INDEX REFERENCE RULERS

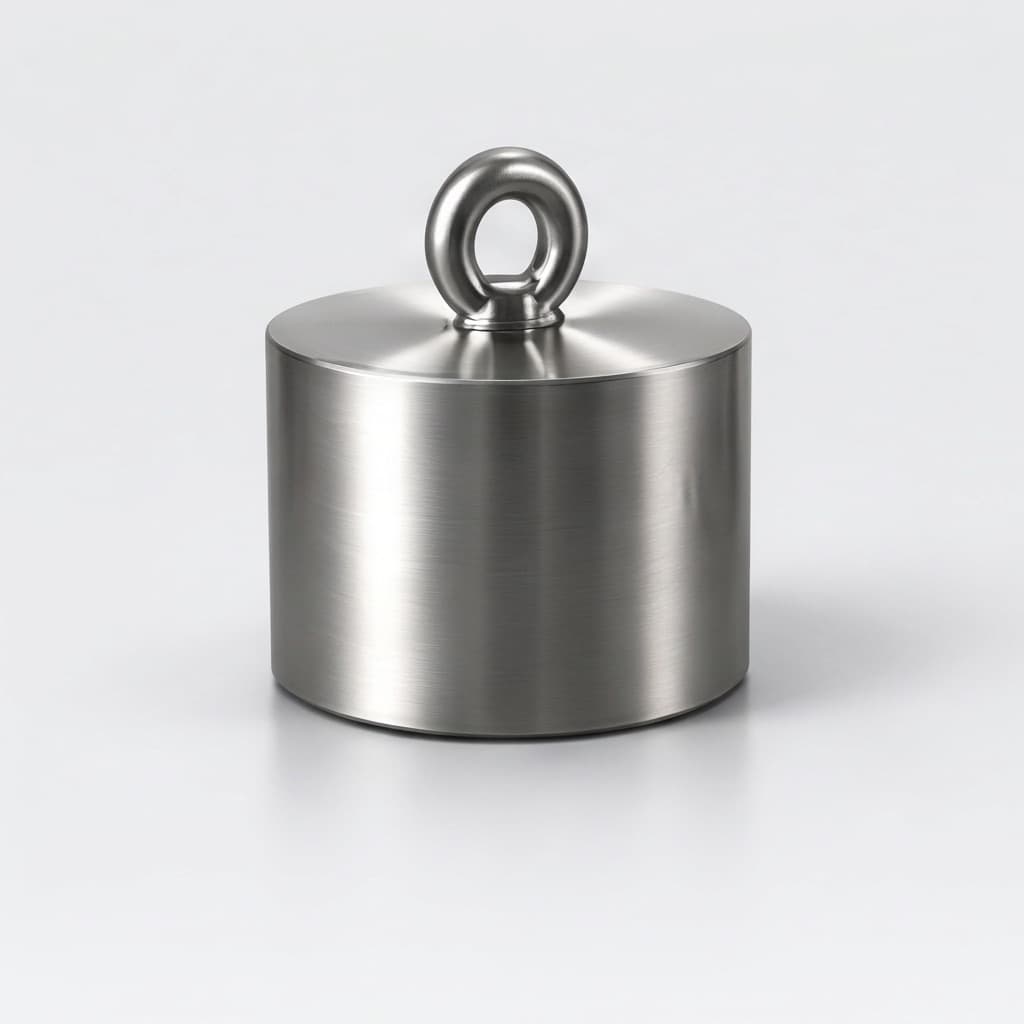

COUNTERWEIGHTS

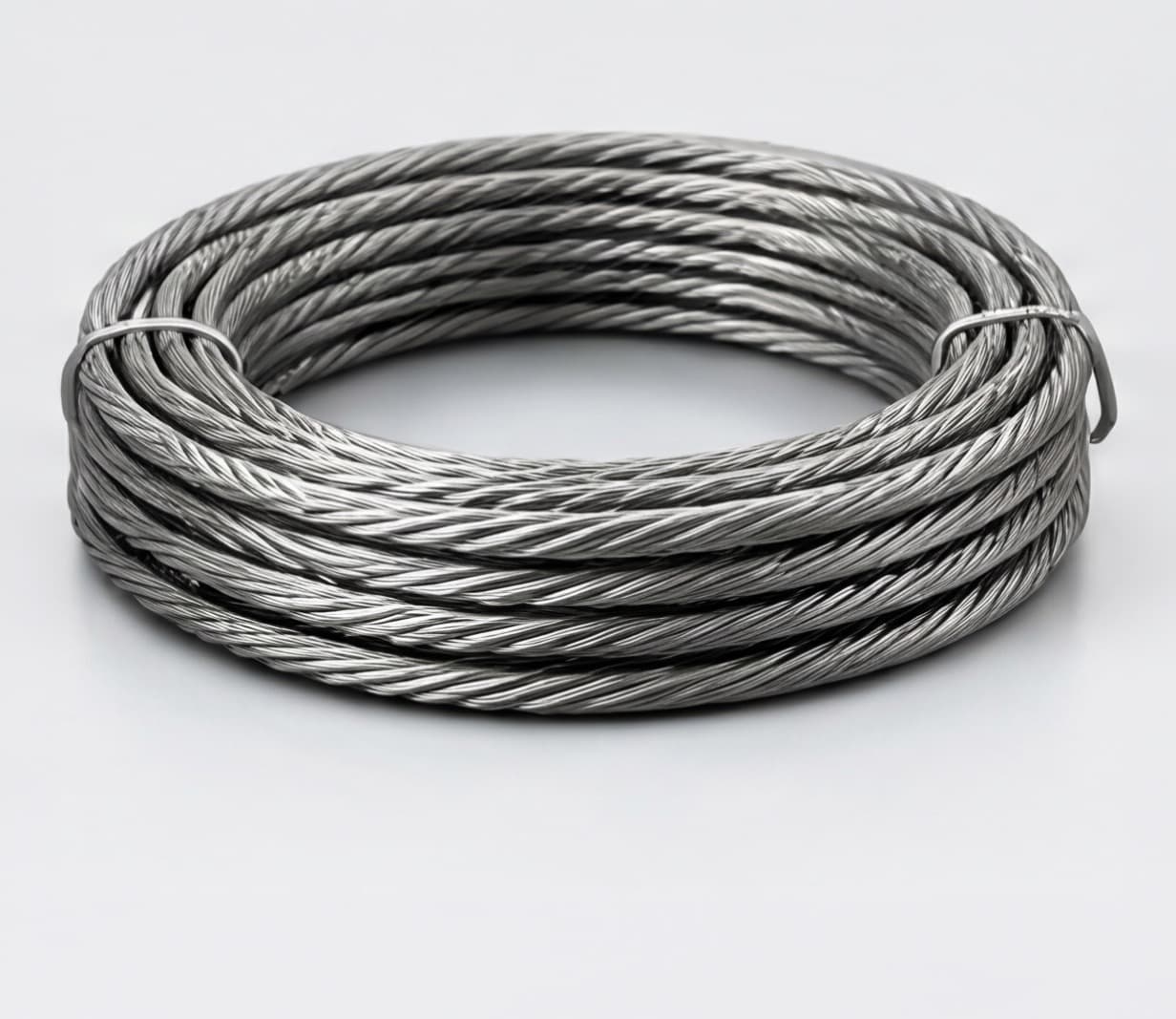

WIRE ROPE

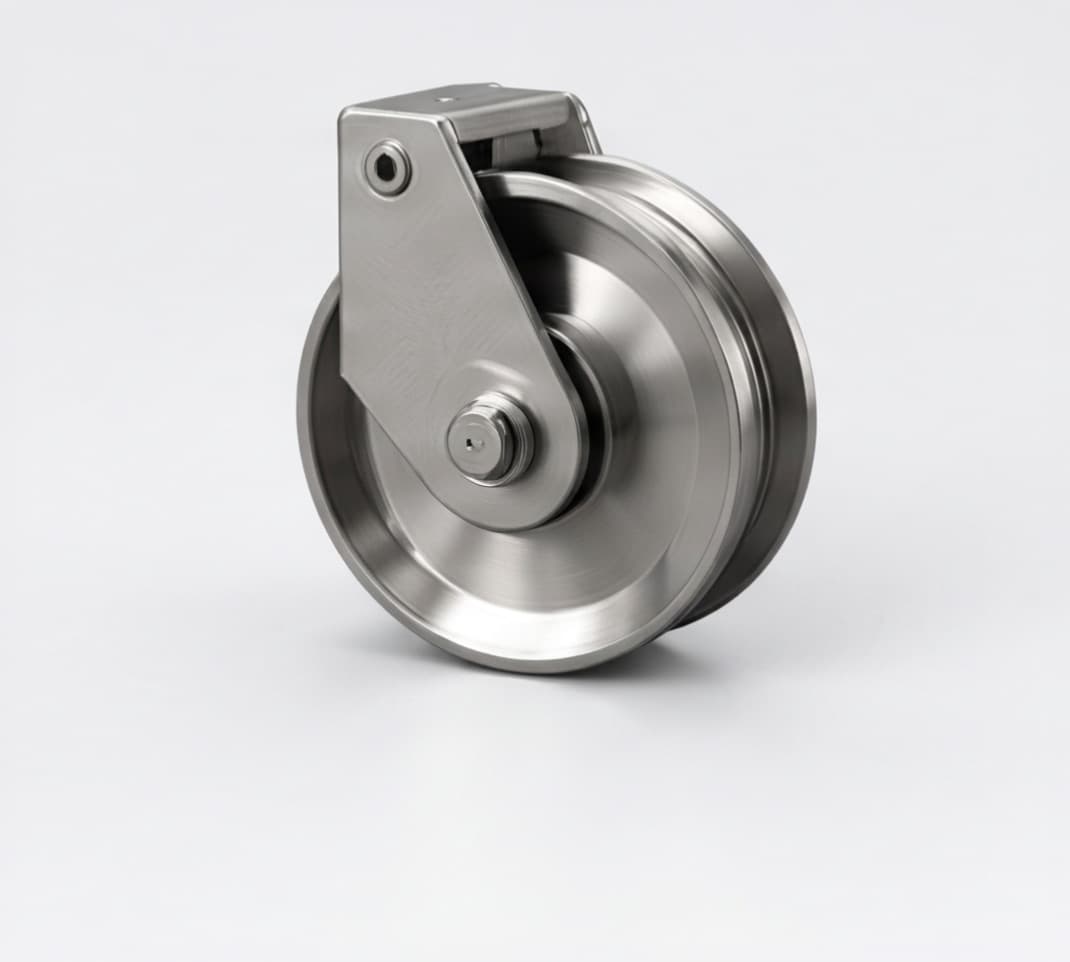

TURN-DOWN SHEAVES

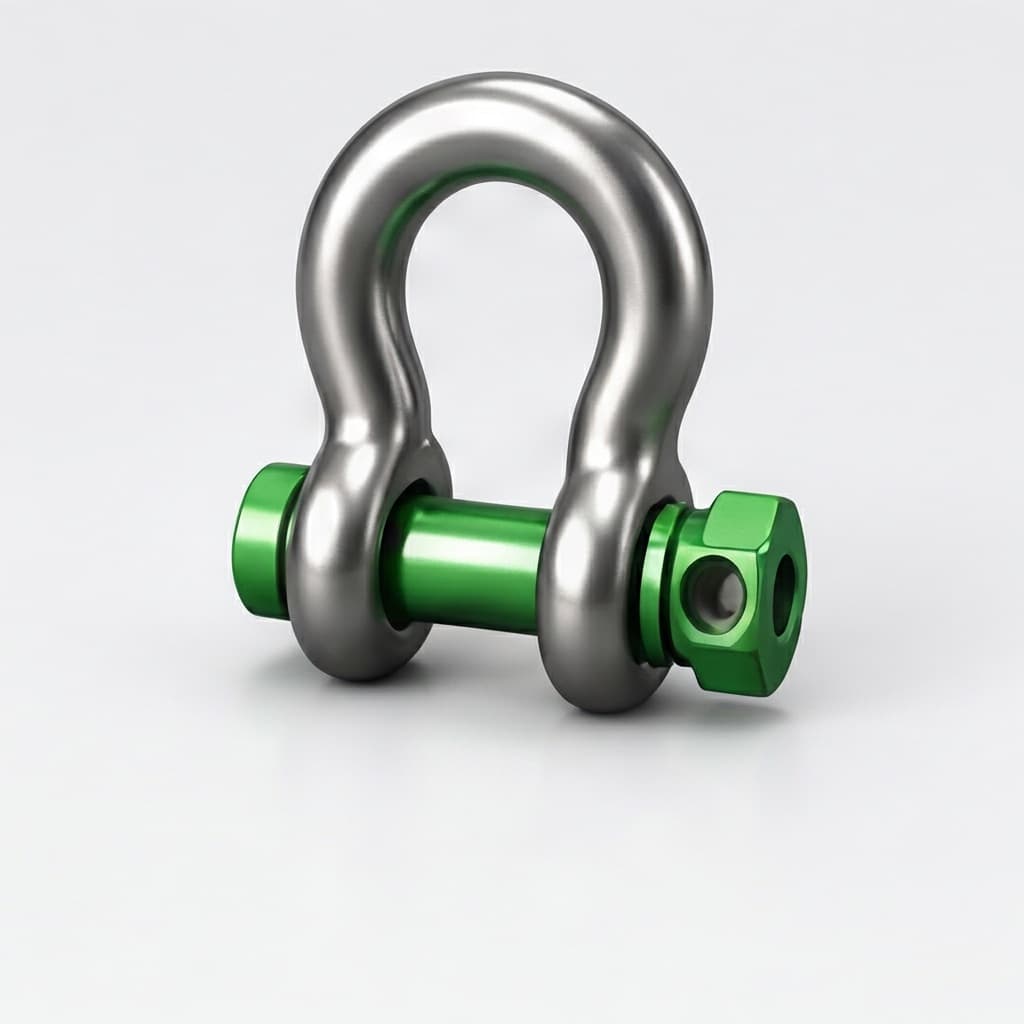

SHACKLES

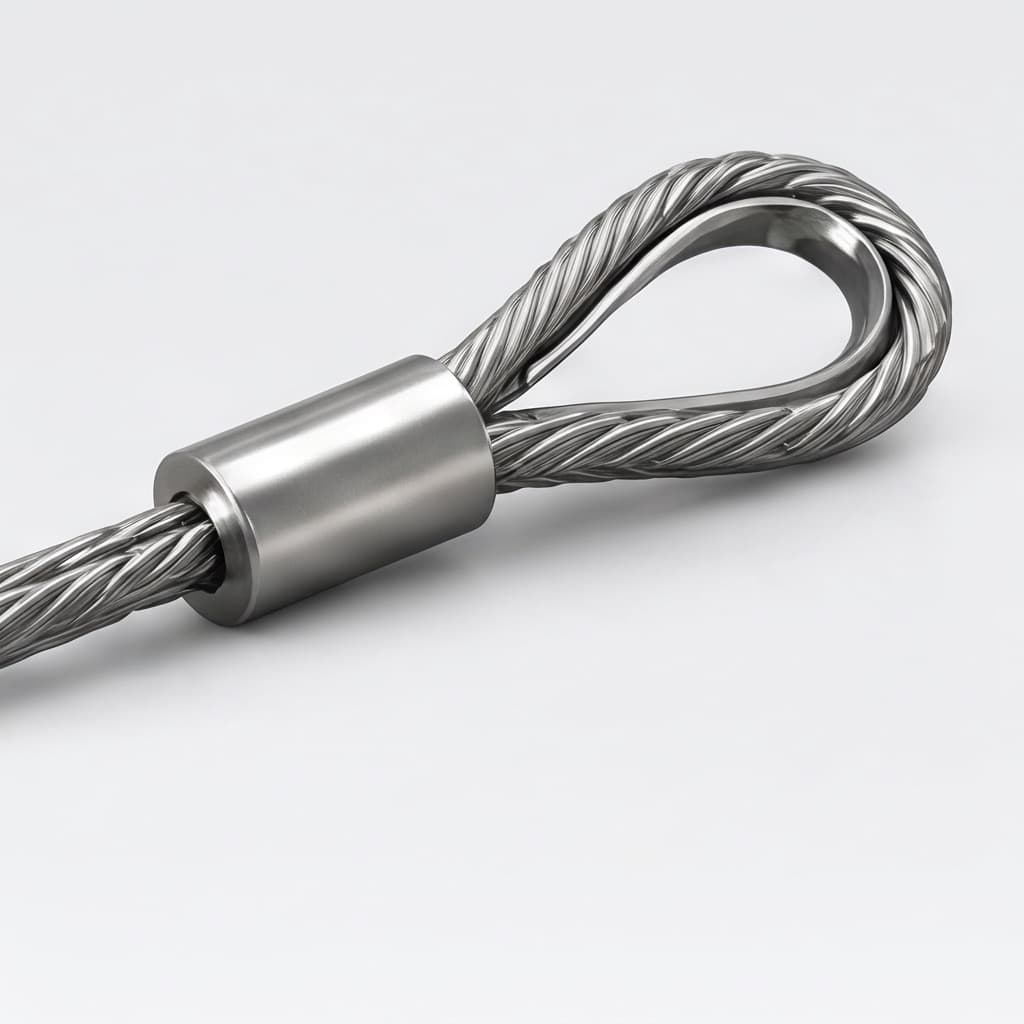

CONNECTION HARDWARE

DATA SHEET

Optical Specifications

Wavelength (nm)
532
Output Power (mW)
4.5
Fan Angle (degree)
30
Beam type
Gaussian
Power requirements
3 x AA battery

Size and dimensions

Standard top plate installed
L
114.8mm
W
70mm
D
38mm
Drops top plate installed
L
134.8mm
W
70mm
D
38mm

Standards

Technical Standard
Designed and built to comply with the applicable requirements of IEC 60079.
Quality Standard
ISO 9001:2015
Laser source
DXR532L006
Standard housing finish
High-visibility green anodising. Other colours available upon request.
